6-DOF Robotic Arm Controller PCB

8-layer controller PCB for 6-DOF industrial robot arm with EtherCAT, servo drives, and force/torque sensing.

RoboticsEtherCATAltiumMotor Control

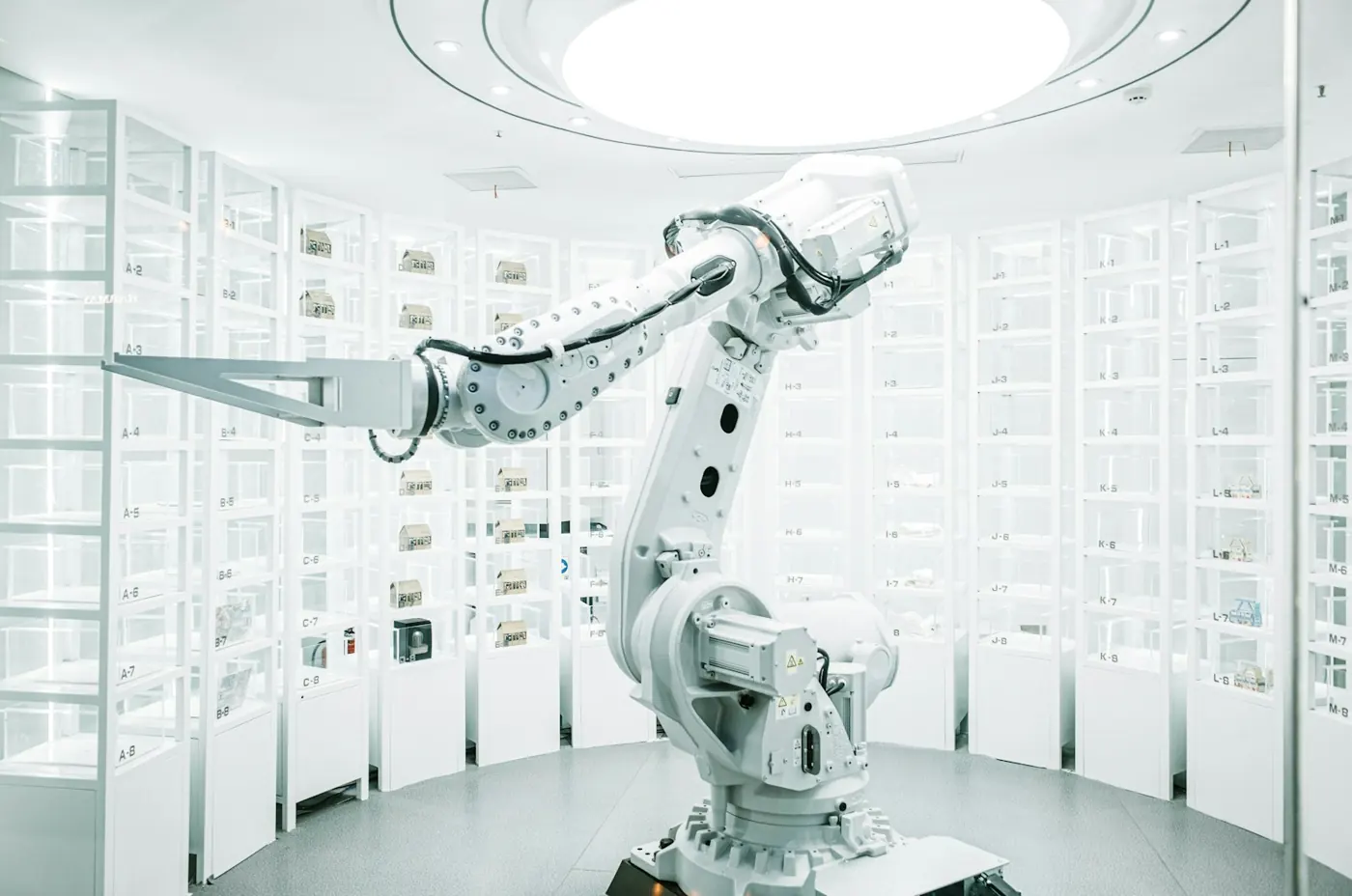

White industrial robotic arm in a bright showroom Enlarge image
Representative photograph: White industrial robotic arm in a bright showroom.
6-DOF Robotic Arm Controller PCB — architecture diagram Enlarge image
Explanatory system architecture: inputs, engineering model and outputs.
6-DOF Robotic Arm Controller PCB — workflow diagram Enlarge image
Explanatory workflow for the engineering analysis and validation process.

Select an image to inspect it. Use the arrow keys to browse the gallery.

Project brief

Central control electronics PCB for a 6-axis industrial robot arm integrating the main MCU, six-axis servo drive interface (STO/SBC safety functions), 6-DOF force/torque sensor amplifier, EtherCAT industrial fieldbus controller, and safety I/O for emergency stop and safeguarded space monitoring. The board supports ROS2 integration via a gigabit Ethernet port.

This case study presents the integration responsibilities of the controller board. It does not add a new safety assessment or robot performance claim.

The engineering challenge

Coordinate multi-axis motion interfaces, force sensing, and supervisory communication on one controller PCB.

Engineering approach

  1. Partition servo, sensing, communications, and safety I/O functions.
  2. Use the industrial fieldbus path for coordinated axis exchange.
  3. Connect the embedded controller to the stated ROS2 companion interface.

Features & capabilities

  • 6-axis servo drive interface: HIPERFACE DSL encoder, STO/SBC, 100V/20A
  • EtherCAT fieldbus slave controller (ET1100) for real-time motion bus
  • 6-DOF force/torque amplifier: instrumentation amp, 24-bit ADC per axis
  • Safety circuit: IEC 62061 / ISO 13849 Category 3 PLd assessment
  • 1kHz coordinated motion update — <100μs inter-axis latency
  • ROS2 compatible via embedded Linux on companion processor
  • 8-layer mixed-signal PCB with separate analog/digital/power ground planes
  • Built-in current sensing for all servo axes via shunt + differential amp

Software & engineering tools

STM32H743, FPGA (Lattice ECP5), ET1100 EtherCAT, AD7175 ADC, Altium Designer (8-layer)
